The MagnaPool® System

Hydroxinator® iQ

  • Wifi Connectivity for remote control and management
  • Ultra-long life RP cell
  • Variable-speed pump control
  • Smart temperature sensor to extend cell life
  • Upgrade to pH and Chlorine control for complete water management

Smart design with health in mind.

The MagnaPool® Hydroxinator® iQ is an easy-to-use, fully automated system right at your fingertips. The Hydroxinator® iQ features a reverse polarity cell that helps keep cleaning and maintenance to an absolute minimum. The control centre allows for you to easily schedule operational times and set output levels. The one-touch boost and low mode functionalities allow you to adjust output depending on your needs.

Equipped with iAquaLink connectivity allowing you to control it via your smartphone, a smart temperature sensor and much more, the all new Hydroxinator® iQ PRO from Zodiac combines cutting-edge technology with beautiful design to provide the ultimate mineral pool water management solution.

Climate Care Certification

  • features
  • specs
  • resources

Long-life RP cell

Long-life RP cell

These upgraded automatic cleaning cell plates have an ultra-long life, combined with smart tech in the chlorine production that will provide years of performance.

Multi-colour light control

Multi-colour light control

Control your pool light(s) directly from the chlorinator (or your smart phone with iAquaLink). This feature requires additional relay box to connect. Ask your nearest dealer for more information.

Pool cover mode

Pool cover mode

Allows you to connect an automatic pool cover that will automatically drop the output to your desired level without having to do a thing.

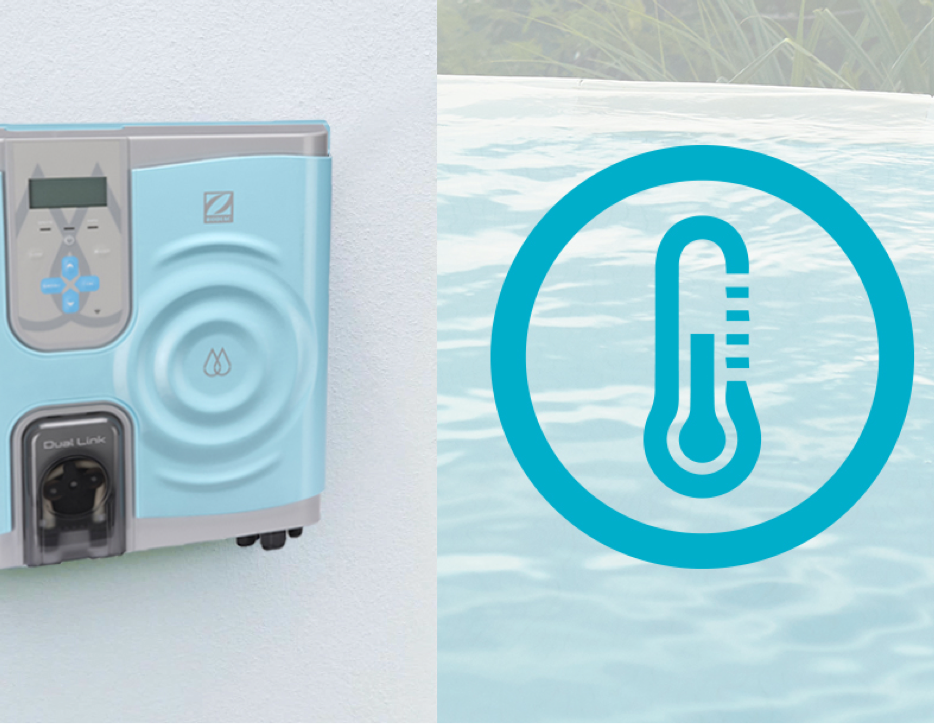

Smart temperature sensor

Automatically regulates output in cold water which prevents excessive wear and tear on your cell, helping to reduce costs.

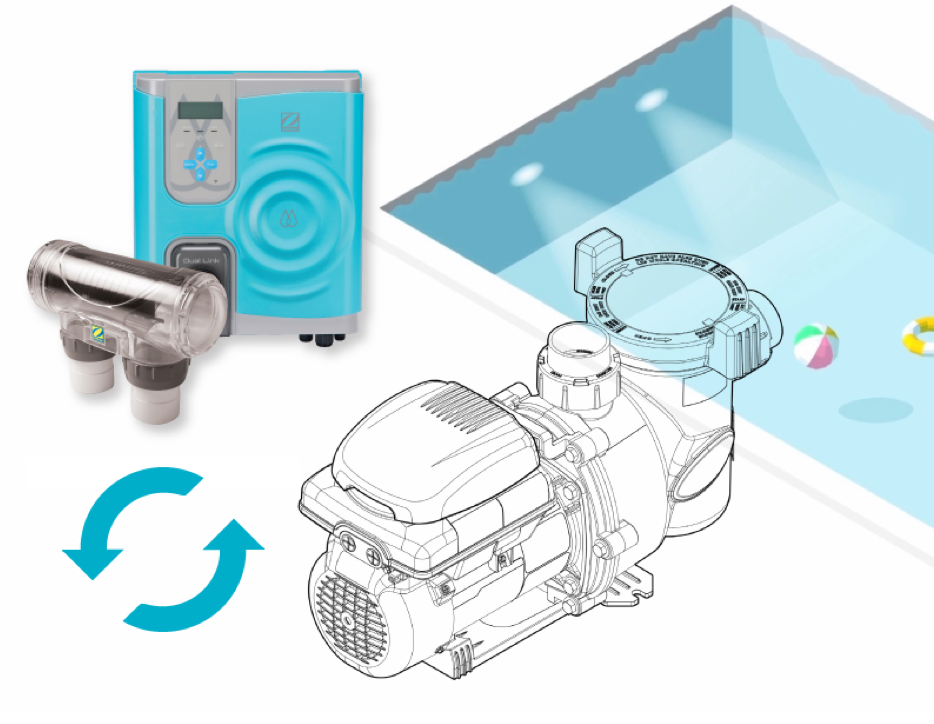

Variable-speed pump control

Provides greater control over pump speed and helps reduce energy consumption. The Hydroxinator® iQ can communicate to RS485 enabled pumps.

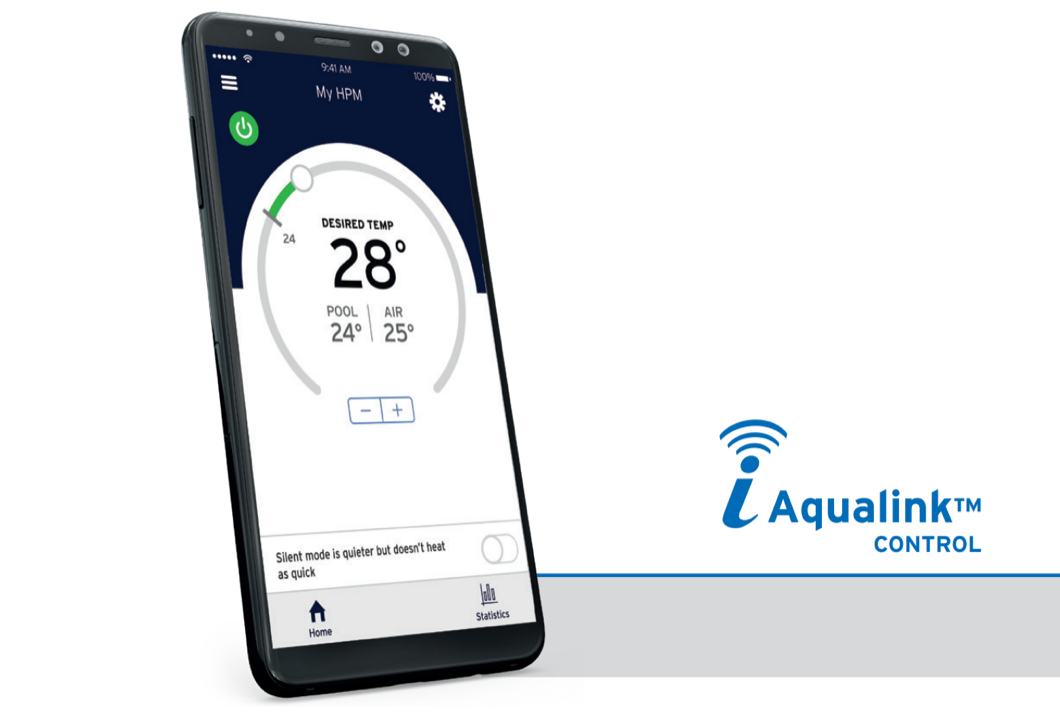

iAquaLink enabled

Features a built-in WiFi chip that allows you to monitor and control remotely, for complete control at your fingertips anytime, anywhere.

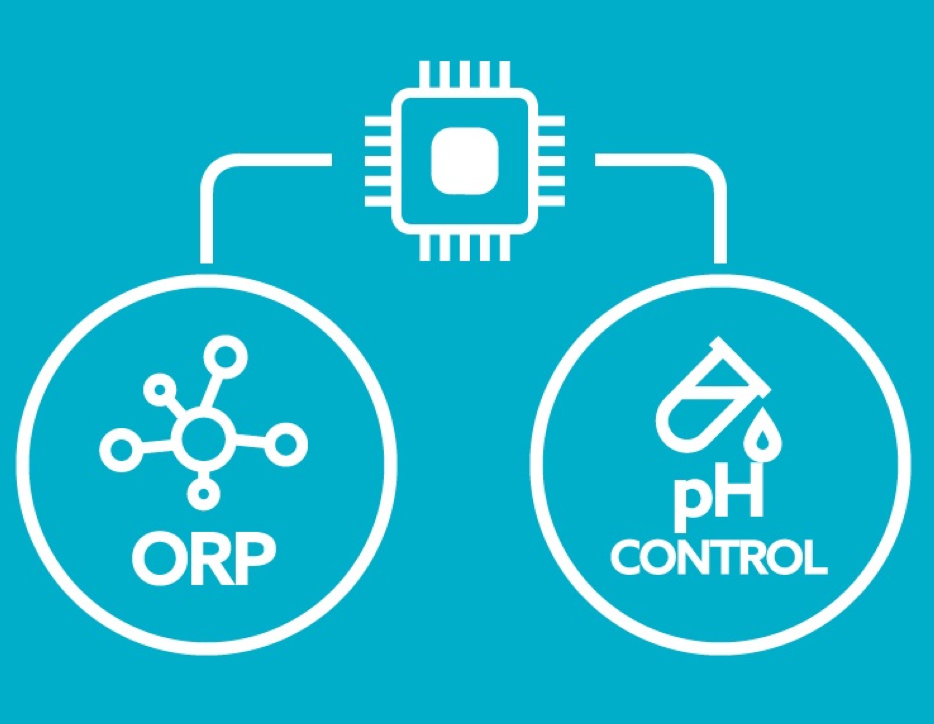

Automated water chemistry control

Monitors and manages your basic water parameters, keeping pH levels in balance and perfectly regulated. The Hydroxinator® iQ also features automated chlorine management via a commercial grade ORP sensor.

Recommended bags of media (15kg/bag) Hydroxinator® Mid iQ Hydroxinator® Large iQ
Technology
Nominal chlorine production 25 g/h 35 g/h
Operating mode(s) Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs. Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs.
Equipment control Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222) Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222)
Salt level (recommended-min.) 4000ppm recommended (minimum - 3300ppm) 4000ppm recommended (minimum - 3300ppm)
Cell protection Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear. Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear.
Warning indicators "Low salt"" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal. "Low salt"" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal.
Power supply 196 W / 110-240 VAC / 50-60 Hz 196 W / 110-240 VAC / 50-60 Hz
Dimensions Power pack: H-370mm x W-320mm x D-100mm RP Cell: H-160mm x W-320mm x D-110mm Power pack: H-370mm x W-320mm x D-100mm RP Cell: H-160mm x W-320mm x D-110mm
Recommended pool size '000L (in mild climate) 75 100
Warranty Power Pack and cell: 3 Years. Probes, tubing and consumables etc: 1 year. Power Pack and cell: 3 Years. Probes, tubing and consumables etc: 1 year.

Brochure

MagnaPool brochure

HydroxinatorA datasheet:

Manual

Magnapool System Installation Guide

How to maintain your MagnaPool

Components of the MagnaPool® system

These components make up the MagnaPool® system. Each element offers its own benefits. But, when all three are combined, the result is truly amazing.

Hydroxinator® iQ

Climate care certified

MagnaPool® Minerals

Climate care certified

Crystal Clear - Glass Filtration Media

Climate care certified

MagnaPool® Test Strips

Climate care certified
